Scanning type Magnetic Leakage Flex Tester

This system is used to detect the flaws on the surface of black steel round bar, steel round bar, especially for low straightness or large diameter material There is two scanning method, one is the tested material will be rotated, forwarded and tested by fixed detection head called skew forwarding, another is detecting head moves in axial direction on the surface of rotating materials at fixed point.

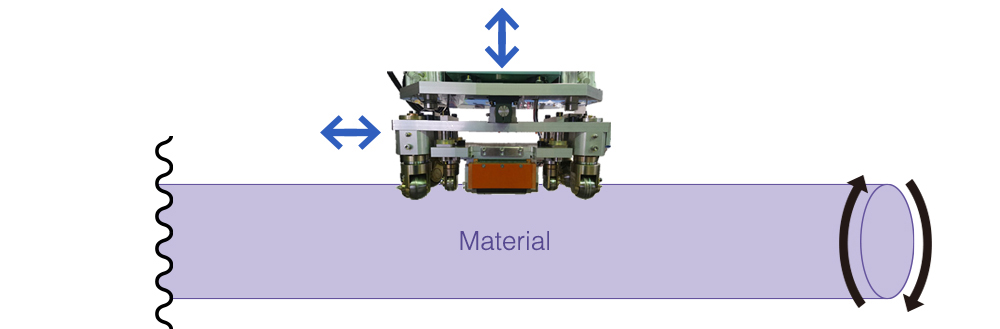

Detecting head (Machine part, Sensor part)

Make the system which suites customer's needs in full-order-made by listen to customer's demand. In addition to detecting head, machine part can be also customized freely, so please feel free to ask us anything.

  • Excitation yoke

    Excitation yoke for magnetizing the test material, is made to have high efficiency and superius performance by utilizing our experience. It is assembled by a hand in our company We succeed to design and produce the probe with improved trackability for tested material and excitation power efficiency by reducing size and weight.

  • Detecting probe:

    Probe which equipped in rotating head is winded, and carefully and finely adjusted by hands of skilled staff. Since both of designing and manufacturing of probe are done in our company, we can make custom-made probes applicable to detect various types of materials and flaws according to customer's request. Therefor, please feel free to contact us.

Electronic unit: mlft-EDX

Features
Saving detection parameter Recordable and replayable detection waveform Excellent simplicity and operability of interface
Phase gate evaluation Built in self-diagnostic system Touch panel is available
Size(mm)
W 600 x H 1710 x D 1010
Weight(kg)
About 360*
*Weight is subject to be changed, depend on the specification

Example of incorporate system into line:

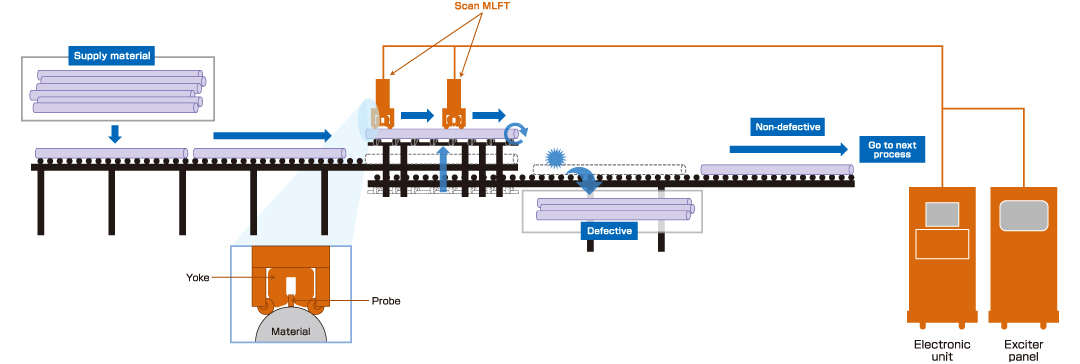

Side view figure

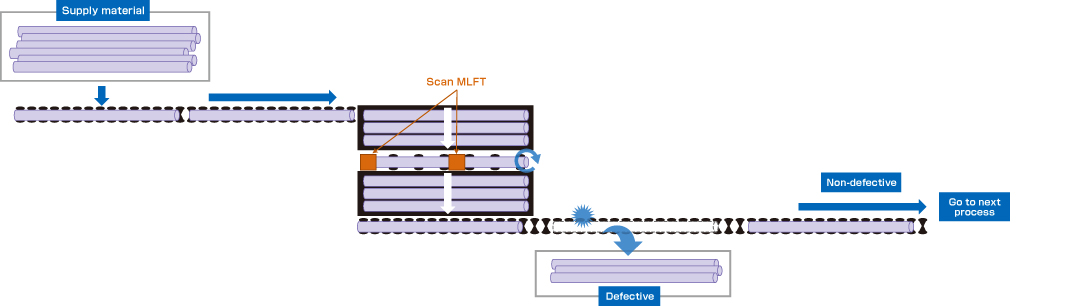

Top view figure

In case of using it for sorting defected material from material supply ※Material fixed and rolling type.
